2208 2000KV
- Item No.: 262208
- Intro: Motors for mini multirotors
262208 2208 2000KV Multirotor motors
KV: 2000RPM/V
Motor net weight with wire: 55gram
ESC: 20A
Specificatoins
Typical Application Performance Chart
Max continuous power: 200W
Stator Poles/magnets: 12S/14P
Stator diameter and height: 2208
Resistance：0.062ohm
Shaft Diameter: 3mm
Motor diameter: 27.5mm
Motor Length: 19.5mm
Motor mount holes：M3x16/19mm
Prop mount holes：M2x9mm
No load current(@ 10V): 0.9A
Application: 2-3S 6x4prop - 8x4 prop

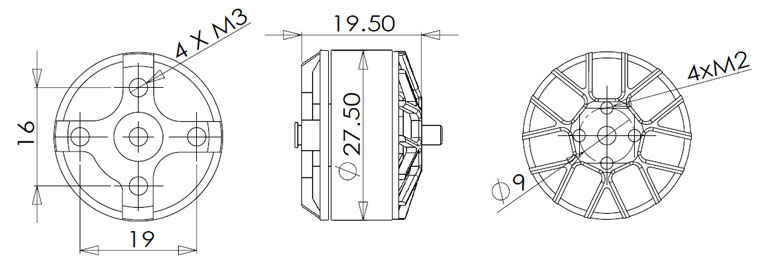

Dimensional Drawing
Propeller Mount. There are 1pcs M5 traditional propeller mount, and 1pcs flat propeller mount as following picture
Propeller Tested Data
|
Propeller |
Battery |
Current (A) |
Power(W) |
Thrust (g) |
|
6x3" |
4S |
24.4 |
352 |
1129 |
|
6x3" |
3S |
15.8 |
164 |
645 |
|
6x4" |
3S |
18.4 |
182 |
800 |
|
8x4" |
2S |
17.5 |
145 |
695 |
|
Applications |
Performacne Charts |
|

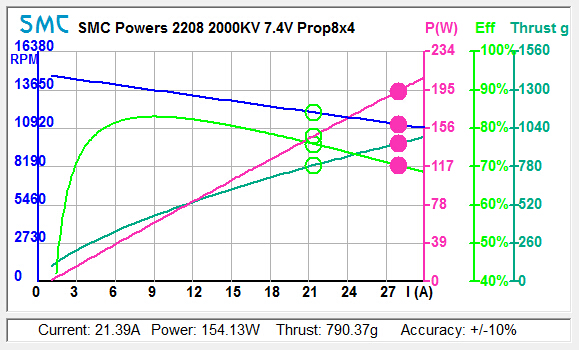

2S Lipo, 8x4" Prop, 20A ESC |
 |
|

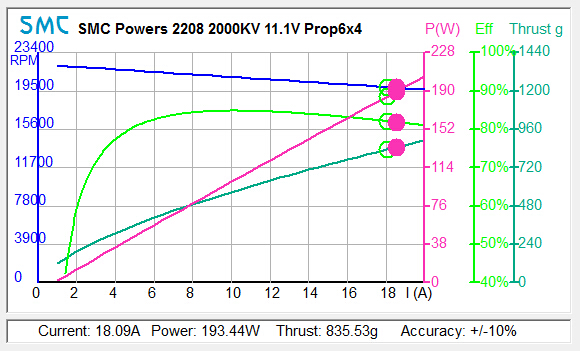

3S Lipo, 6x4" Prop, 20A ESC |
|
|

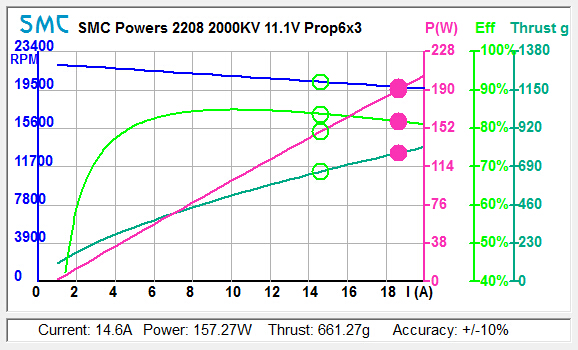

3S Lipo, 6x3" Prop, 20A ESC |
 |
|

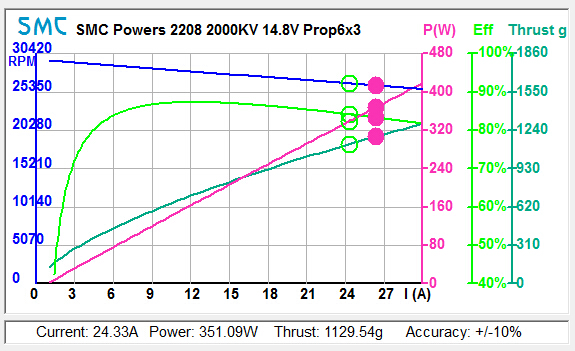

4S Lipo, 6x3" Prop, 30A ESC |
 |
