Your Position: Home > Product > Motor

1806 2300KV motor

Update: 2015/1/12      View:
  • Item No.:    261806
  • Intro:    multi rotors motors using prop 6x2 or 6x3 for 250 frame application
  • Order Online
Product Introduction

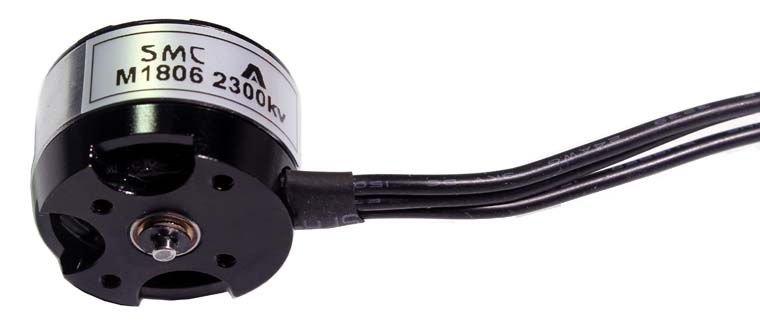

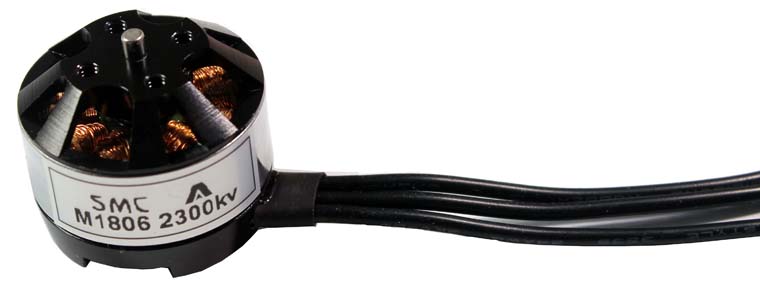

1806 2300KV motor for Mini multirotors


Specifications:
 Typical Application Performance Chart

KV:                     2300RPM/V
Configuration:     12N14P
Stator Diameter: 18mm
Magnet Length:    6mm
Shaft Diameter:   2mm
Weight (g):          18g
ldle current(10)@10v(A): 0.6A
Battery:                 2-3S lipo
Propellers:          3S 5x3, 6x2, 2S 6x2, 7x2.4

Max Continuous current(A)180S: 14A
Max Continuous Power(W)180S: 150W
Internal resistance: 135mΩ



Dimensional Drawings:



Propeller Tested Data

Propeller
 Battery
 Current (A)
 Power(W)
 Thrust (g)
5x3" 3S 10 106.5 400
6x2" 3S 12.4 130.6 545
6x2" 2S 6.4 46.7 295
7x2.4" 2S 10.9 76.8 385


Applications Performance Charts

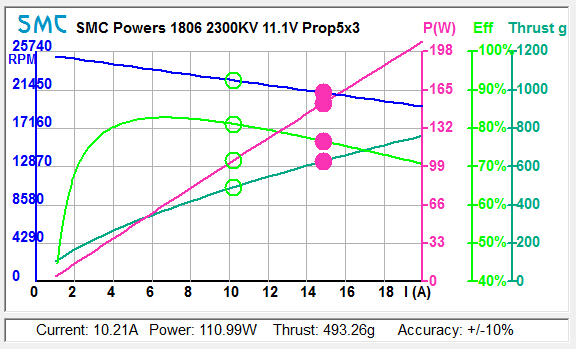

3S Lipo, 5x3" Prop, 18A ESC

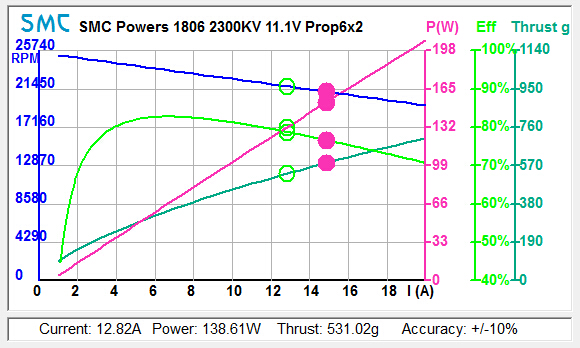

3S Lipo, 6x2" Prop, 18A ESC

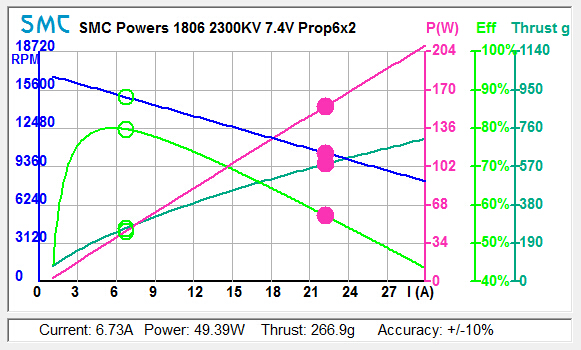

2S Lipo, 6x2" Prop, 12A ESC

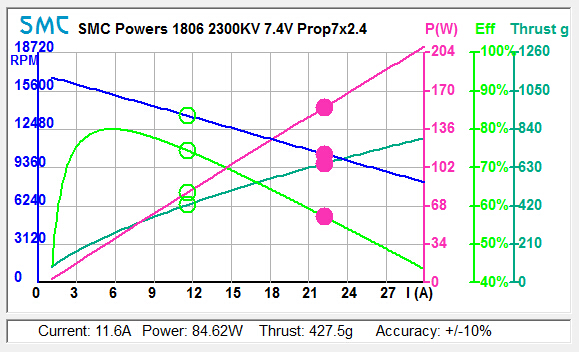

2S Lipo, 7x2.4" Prop, 18A ESC


Applications:
