ESC BLHeli 32bit
Update: 2018/6/1 View:
- Item No.: 352424, 352630
- Intro: BLHeli 32bit ESC
Product Introduction

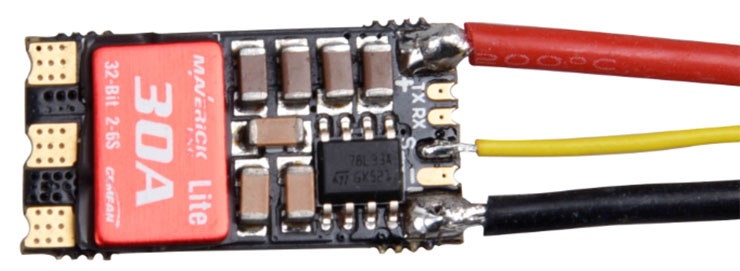

352424 ESC Maverick 24A 2-4S 32bit No BEC 2.3g 25x13mm For FPV352630 ESC Maverick 30A 2-6S 32bit No BEC 2.3g 25x13mm for FPV
Maverick ESC adopts 32bit MCU with high efficiency, smart adaptive motor algorithm, which controls the motor more precisely. Accurate control and quick throttle response make your drone have a perfect performance.
Features:
Has 32bit MCU and 2048 throttle resolution.
Supports DSHOT150/300/600, oneshot125, oneshot42, and multishot, as well as PWM 25-500Hz.
Has auto-timing, active braking.
Has 3D mode which allows instantaneous change of motor rotation direction.
Can setup parameters through cleanflight or betaflight controller.
Small size 25 x 13mm, light weight as 2.3g without wires.
Specifications:
|
|
|
Specificaitons |
|
352424 |
ESC Maverick 24A |
Cont. Current: 24A Peak Current: 35A BEC: NO LiPo: 2-4S Weight: 2.3g(without wires) Size: 25 x 13 mm |
|
352630 |
ESC Maverick 30A |
Cont. Current: 30A Peak Current: 40A BEC: NO LiPo: 2-6S Weight: 2.3g(without wires) Size: 25 x 13 mm |
