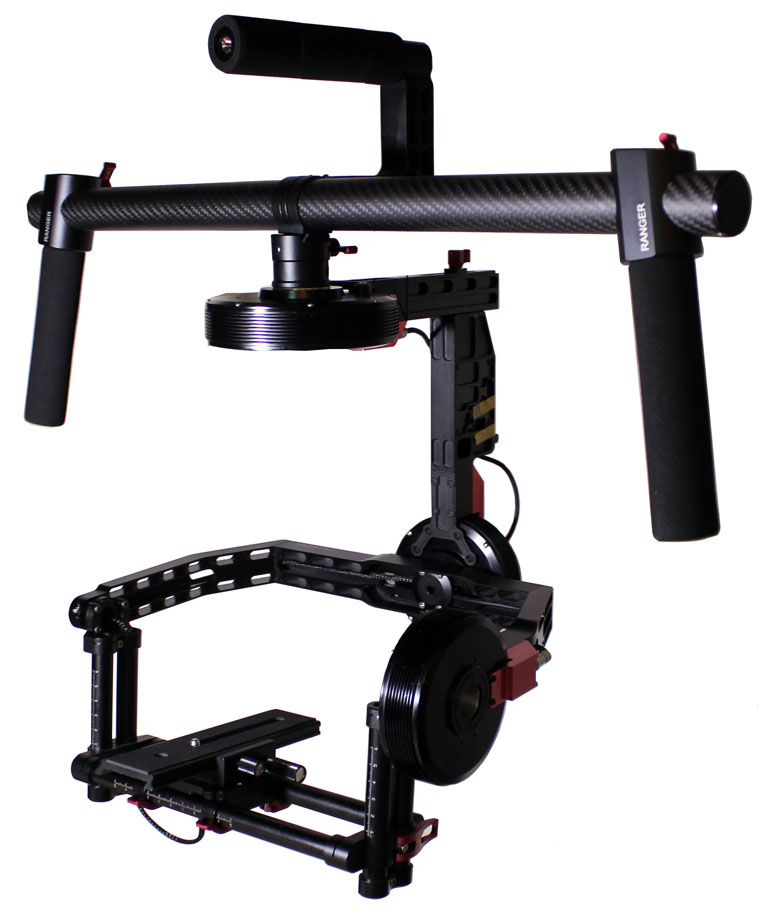

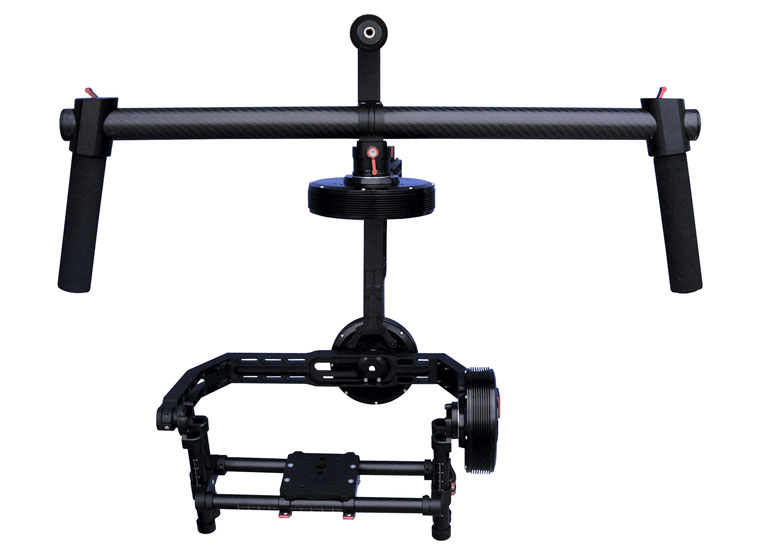

701011 Wind Ranger Pro II

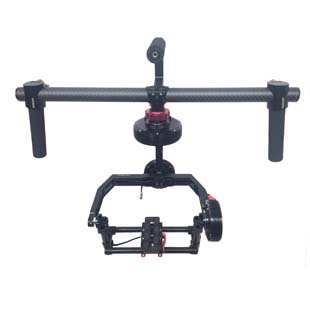

701012 Wind Ranger Pro II V2 with PM100 Yaw motor

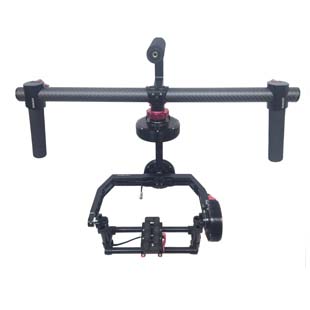

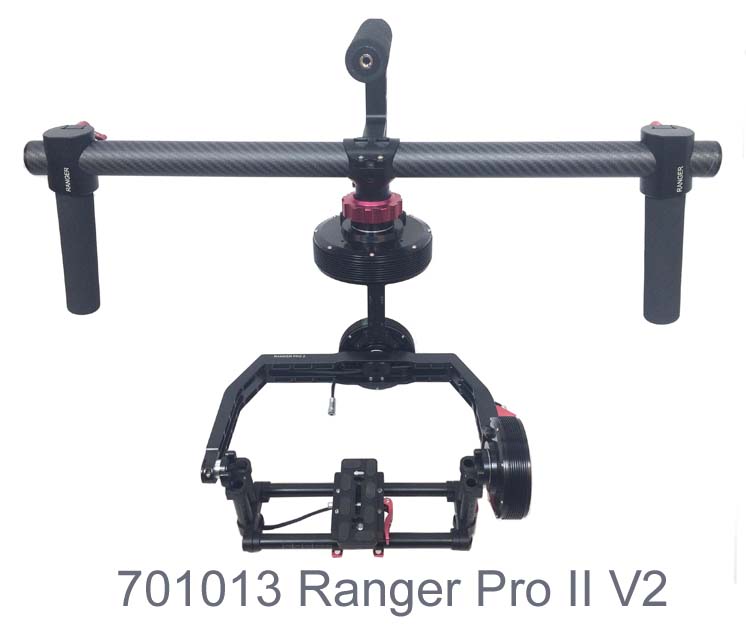

701013 Wind Ranger Pro II V2 with PM117 Yaw motor

701020 Wind Ranger Pro II V2 with encoder with licence (3x PM100 motors)

701021 Wind Ranger Pro II V2 with encoder without licence (3x PM100 motors)

Supports Canon 5D and Red EPIC

Improvement:

1. Using more powerful gimbal motors PM100 for the Pitch, Roll and PM117 for the Yaw.
2. Using many CNC parts, which are disigned for quick installation.

Different Versions:

701011  Wind Ranger Pro II	701012  Ranger Pro II V2 with PM100 Yaw motor	701013  Ranger Pro II V2 with PM117 Yaw motor

Specifications:

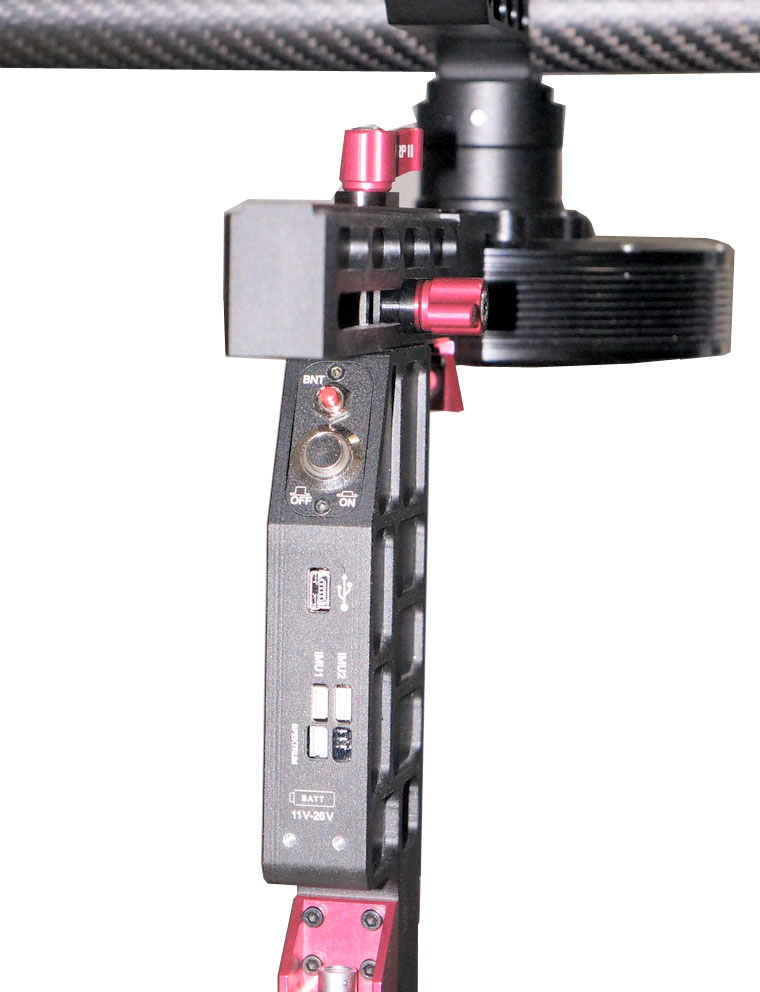

1. Using legalized BaseCam SimpleBGC 32-bit 3A controller.
    With USB port for upgrade the software and set the parameters.

    Support bluetooth.
2. Gimbal Size: 620mm(W) x 280-380mm (D)x 500mm(H)

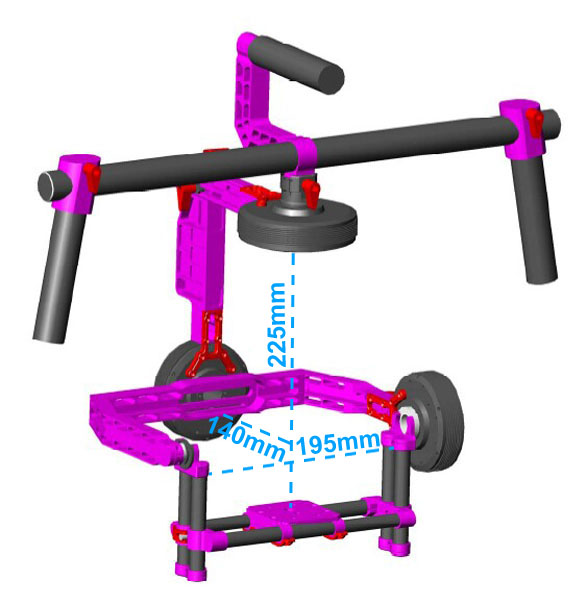

3. Support camera size: 140mm(L) x 195mm(W)x 225mm (H)

4. Weight: 3.465kg (not including battery or camera)

Gimbal controller sections:

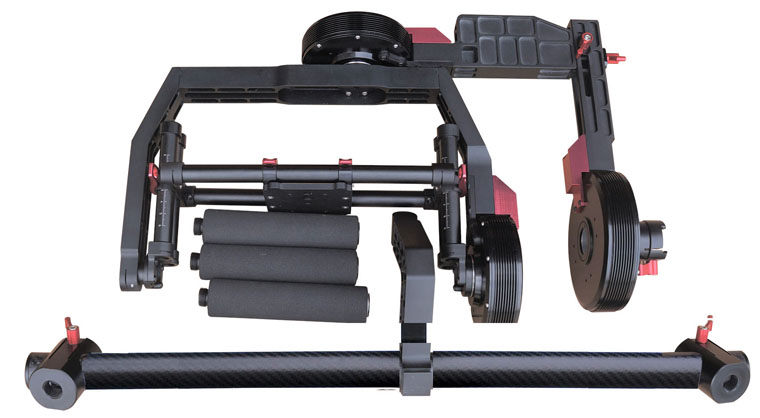

The gimbal set including:
1. 3 axis gimbal frame with 3 handheld grips 1set.

2. BaseCam SimpleBGC 32-bit 3 axis control panel supports 2S to 6S Lipo battery with Alexmos firmware 1pcs.

3. 1st IMU sensor with connecting wires 1pcs

4. 2nd IMU sensor with connecting wires 1pcs

5. High torque motor PM100 2pcs, PM117 1pcs

6. Battery mount 1pcs

7. Camera mount basic 1pcs

Packing status:

The standard packing: The wind ranger pro II will be packed in cartoon for shippiing.

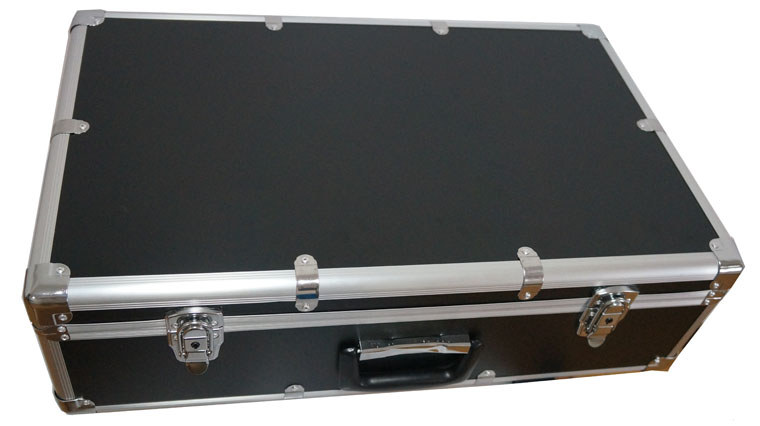

The optional carrying case: The wind ranger pro II carrying case, an aluminium case.

Accessories list

Part No.	Item	Picture
708001	Carrying Casing for Wind Ranger Pro II
708002	Joy stick with 70cm wire
708003	Pipe mount diameter 30mm
708004	Monitor mount Arm

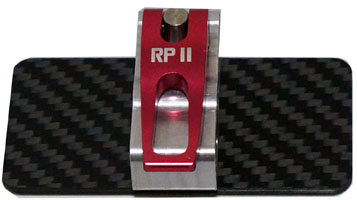

708005	Battery mount

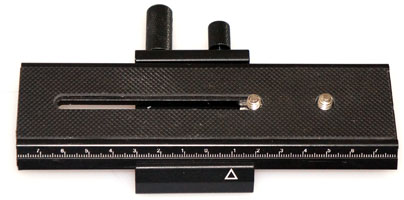

708006	Camera mount basic
708007	Camera mount with tilt bar KIT
708008	Gimbal stand
708010	Fly adapter

708011

Bluetooth with customized wire

The gimbal set is almost ready to run. The user can plug a 6S lipo battery or 2pcs of 3S lipo batteries in series to run it. Please note that the Lipo battery is optional parts, not included in the set.
