Tiny B, Basecam Tiny Pro V2, SimpleBGC Tiny 32-bit,

Update: 2019/4/16      View:
  • Item No.:    703325, 703326, 703327, 703332
  • Intro:    BaseCam Tiny Pro V2, support I2C and PWM encoder controller, including Pitch, Roll, and Yaw motors
  • Order Online
Product Introduction

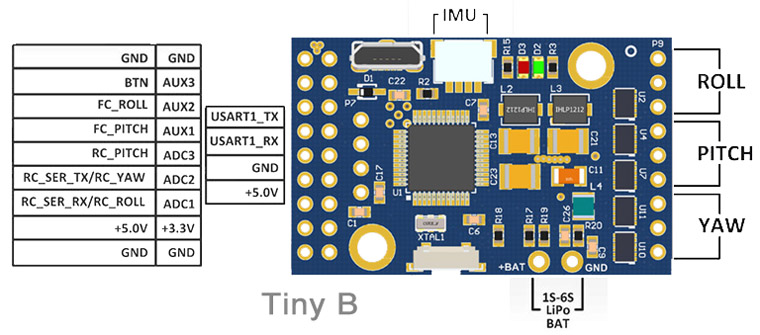

Tiny B

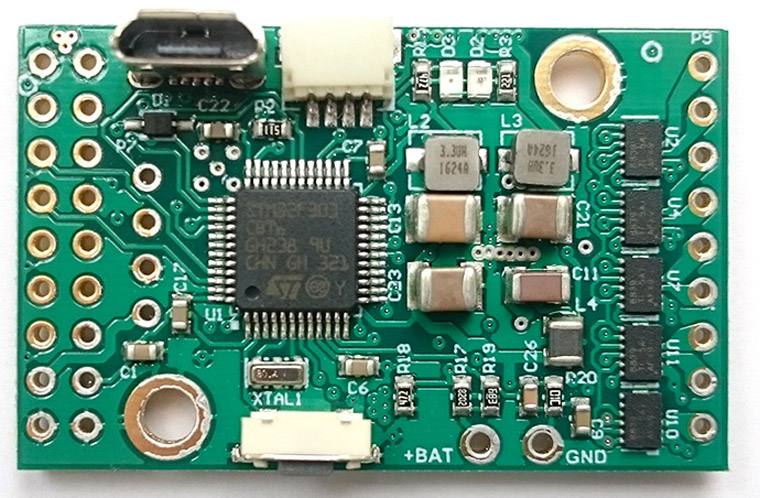

703332 Tiny B - revision B


Revision B improvements:
Smaller than the previous version: dimensions are 25×40 mm, height is 7mm (pin headers are not installed)
Current capabilities were extended:
o +5V line can provide up to 1A continuous current (that is enough to power GoPro camera), and up to 2A instant current *
o +3.3V line can provide up to 500 mA continuous current and 1A instant current *
o Input voltage range was extended to 1s 6s (3.7V–25V)
o USB-UART onboard converter simplifies PC connection, fewer problems with drivers compared to the previous version
* Total current taken by the 5V load, 3.3V load, and motor drivers, should not exceed 2A. Proper thermal dissipation is required.
Specifications


Tiny B Tiny Pro V2

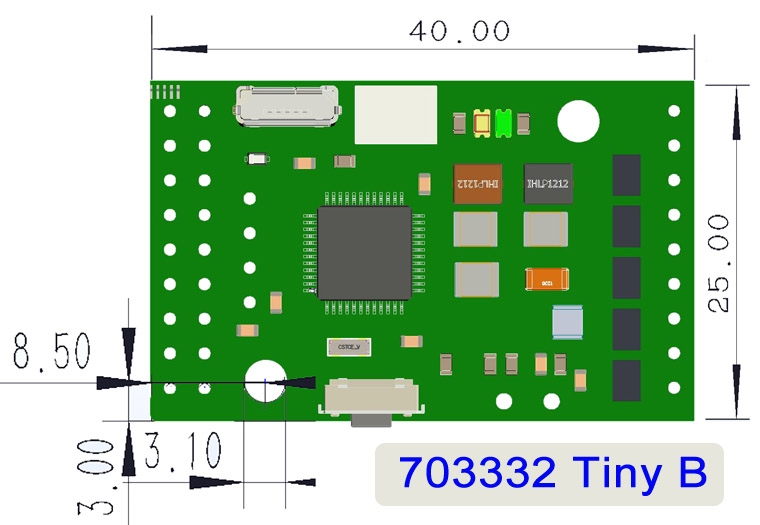

Size of the board:
40×25 mm
50×25 mm
Power supply voltage
3.7-25V 1S-6S 7.4-25V 2S-6S
Maximum motor current:
1A 1.75A
Capabilities of the controller


Possibility to manage the system on different platforms
Desktop systems: Windows, macOS, Linux. Possibility to update the firmware of the controller(through the GUI).
Smartphones: Android and some control from 3rd party vendors for Apple's iOS product (iPhone and iPad).
Open Serial API
Automatic tuning of PID parameters
Support of systems with various configurations
Operation of the system at any angle
Adaptive PID-algorithm for preventing vibrations
Support of a wide range of external control protocols
Futaba, Spektrum, 5x PWM, Sum-PPM, 3 ADC.
Flexible configuration allows for control of any functions of the system (every parameter that the system uses is configurable). The system can decode Futaba / Spectrum and provide PWM to control servo drives.
Size


Basecam Tiny Pro V2

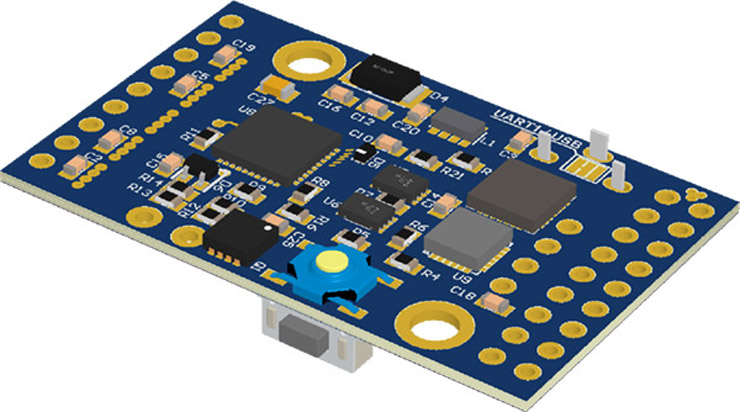

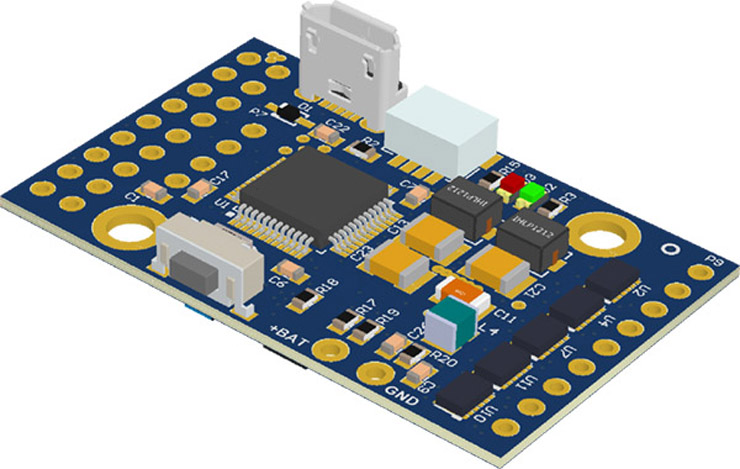

  • 32bit MCU-ARM Cotex CPU
  • On board IMU, can be used as Frame IMU or Camera IMU by master / slave jumper settings
  • Support I2C and PWM encoder controller
  • Support Pitch, Roll, and Yaw motors
  • Support RC protocal: PWM, Sum-PPM, Spektrum, and S-Bus



Item No. Descriptions
703325
BaseCam SimpleBGC 32-bit Tiny Pro V2 without licence
703326
BaseCam SimpleBGC 32-bit Tiny Pro V2 with Brushless motor licence
703327
BaseCam SimpleBGC 32-bit Tiny Pro V2 with Brushless Motor and Encoder licence


Specifications

Size of the board: 54x25mm
Diameter of the mounting holes: 3 mm
Power supply voltage: 7.4–25V
Consistent each motor current: 1.75A
Parts List

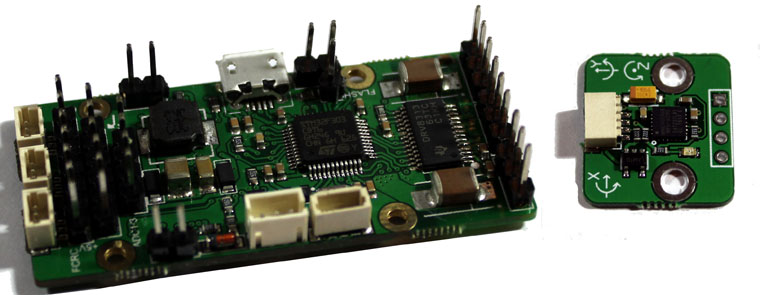

Basecam Tiny Pro V2 mainboard: 1 pcs
I2C IMU: 1 pcs
I2C cabel: 1pcs
