Connectors for Battery, ESC and Motor
Update: 2014/10/11 View:
- Item No.: 581301, 581601, 581901, 581902, 583201, 583301, 583302, 583351, 583352, 583401, 583402, 583552, 583602, 583802, 582351, 582501
- Intro: Connectors, XT30, XT60, XT90, and XT90-S, EC3, EC5, GC2,3,3.5,4,5.5,6,8
Product Introduction
Connectors for Battery, ESC and Motor

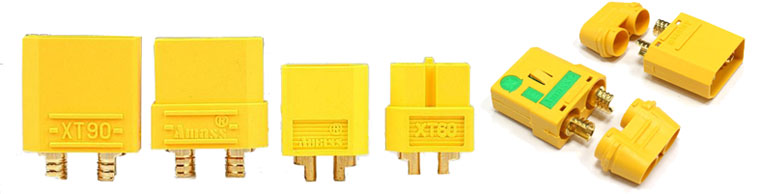

1. XT30, XT60, XT90, and XT90-S connectors
| Item number | Name | Specifications |
| 581301 | XT30 | XT30 2.0mm 80A/120A male and femaile 1.7g |
| 581601 | XT60 | XT60 3.5mm 80A/120A male and femaile |
| 581901 | XT90 | XT90 4.5mm 90A/120A male and femaile 12.5g |
| 581902 | XT90-S | XT90-S 4.5mm 90A/120A male and femaile 12.5g |

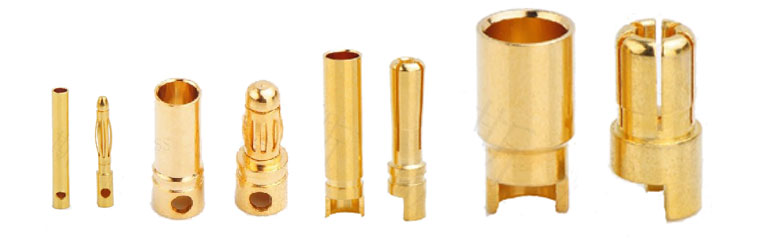

2. Gold Connectors
| Item number | Name | Specifications |
| 583201 | GC201 | Gold connector 2.0mm 20A/40A with leaf spring male and female 0.63g |
| 583301 | GC301 | Gold connector 3.0mm 30A/60A with leaf spring male and female 0.95g |
| 583302 | GC302 | Gold connector 3.0mm 50A/80A with cross male and female 1.5g |
| 583351 | GC351 | Gold connector 3.5mm 35A/75A with leaf spring male and female 1.4g |
| 583352 | GC352 | Gold connector 3.5mm 50A/80A with cross male and female 1.5g |
| 583401 | GC401 | Gold connector 4.0mm 40A/80A with leaf spring male and female 2.8g |
| 583402 | GC402 | Gold connector 4.0mm 60A/80A with cross male and female 2.9g |
| 583552 | GC552 | Gold connector 5.5mm 80A/100A with cross male and female 5g |
| 583602 | GC602 | Gold connector 6.0mm 100A/120A with cross male and female 3.1g |
| 583802 | GC802 | Gold connector 8.0mm 150A/180A with cross male and female 11.3g |

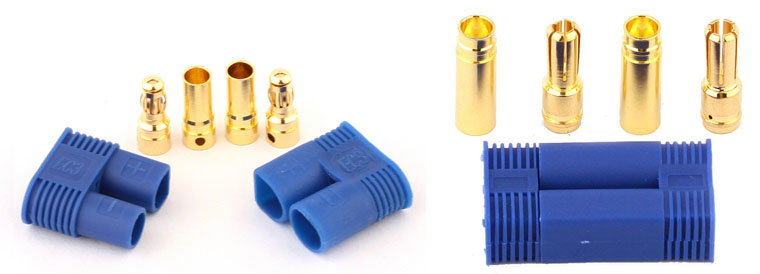

3. EC3, EC5 connectors
| Item number | Name | Specifications |
| 582351 | EC3 | EC3 3.5mm 35A/60A male and female |
| 582501 | EC5 | EC5 5.0mm 100A male and female |
