4010-6.5 Motor-SMC Powers

4010-6.5 Motor

Update: 2014/12/27 View:

Item No.: 264010
Intro: Multirotor motor 24N28P 200W 4S 10x5 Prop 18AWG, 600mm wires

Product Introduction

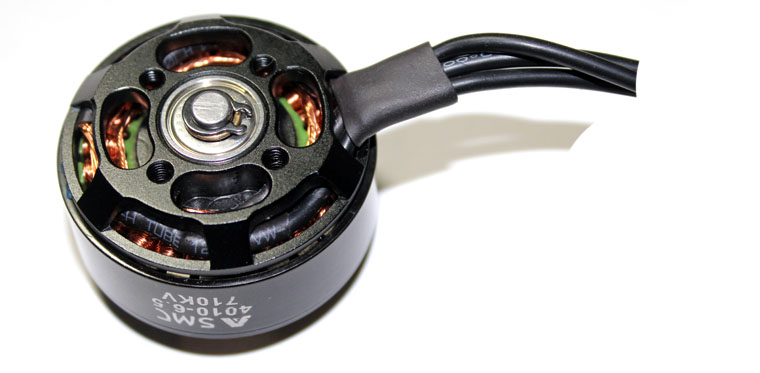

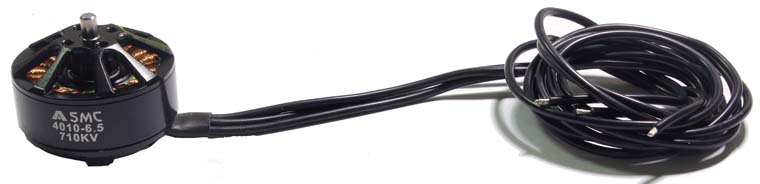

264010 Multirotor motor 4010-6.5 710KV

Specifications

Typical Application Performance Chart

KV: 710RPM/V
Maximum Power: 354W(15sec)
Continuous Power: 207W
Stator Poles/magnets: 24S/28P
Stator diameter and height: 3410
Resistance：0.066ohm
Shaft Diameter: 4mm(5mm internal)
Motor diameter: 39.5mm
Motor Length: 27mm

Motor net weight: 80gram
Motor mount holes：M3x19mm
Prop mount holes：M3x12mm
No load current(@ 10V): 0.8A

ESC: 30A
Application: 4S 9x4.5, 10x4.5, 11x4.5prop

Drawing:

Propeller Tested Data

Propeller	Battery	Current (A)	Power(W)	Thrust (g)
9x4.5"	4S	9.8	144.1	880
10x4.5"	4S	13.7	200.7	1150
11x4.5"	4S	18.5	270.1	1445
11x4.5"	3S	11.1	122.1	850

Applications	Performacne Charts

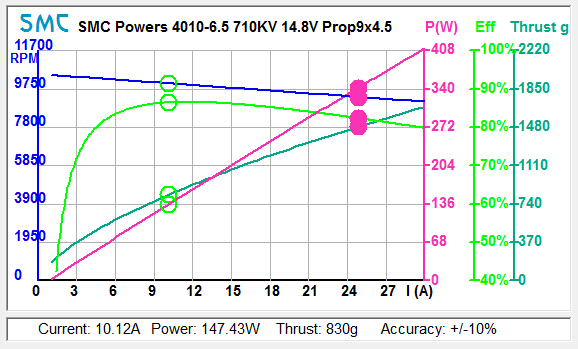

4S Lipo, 9x4.5" Prop, 30A ESC

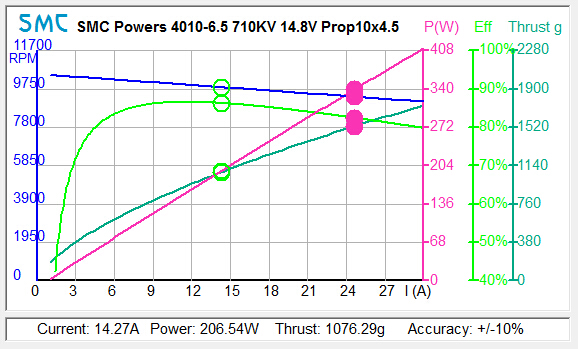

4S Lipo, 10x4.5" Prop, 30A ESC

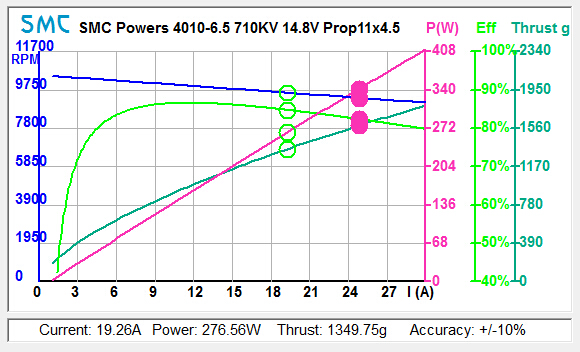

4S Lipo, 11x4.5" Prop, 30A ESC

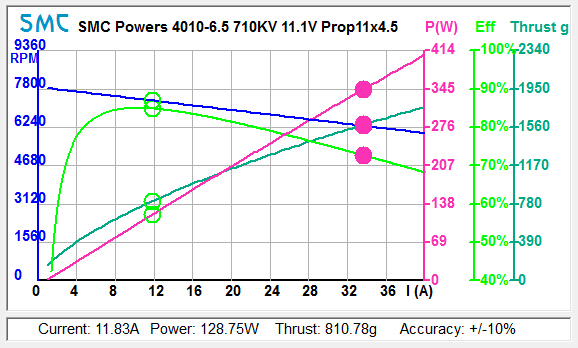

3S Lipo, 11x4.5" Prop, 30A ESC

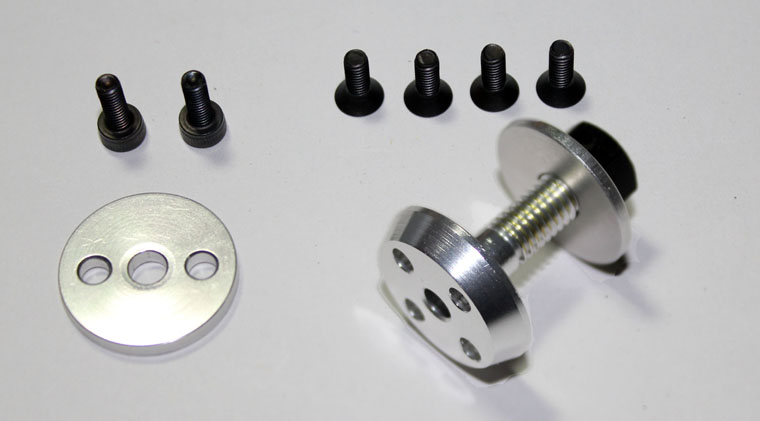

Parts included:

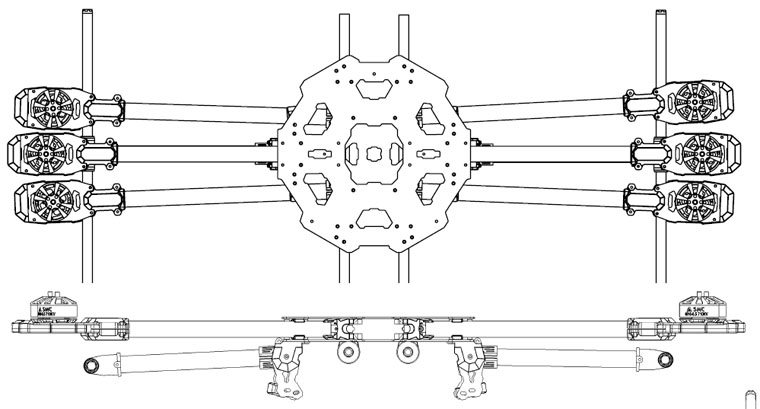

Applications:
