SP Racing F3

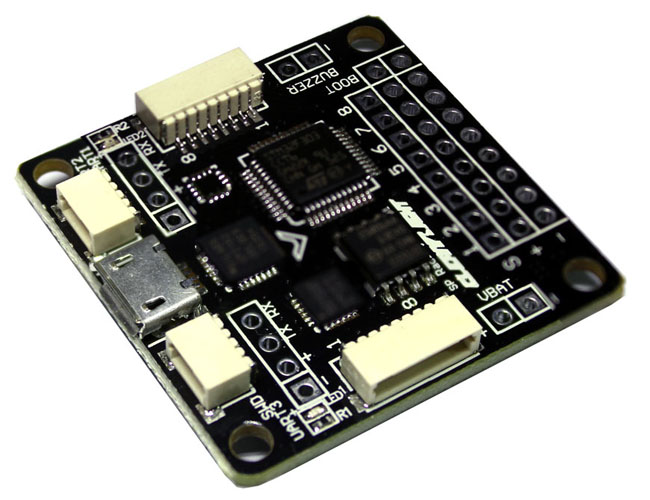

103230 SP Racing F3 flight controller Acro (standard version)

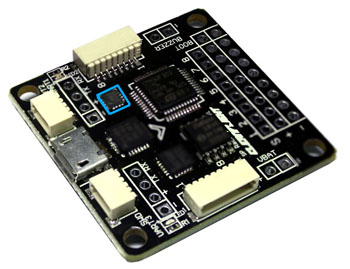

103231 SP Racing F3 flight controller Deluxe (with additional sensors for altitude and direction)

The Flight Controller (SPRacingF3) was designed to give awesome flight performance based on tried and tested sensors whilst also providing unparalleled I/O capabilities in a small and extremely lightweight form-factor using a next-generation CPU STM32 F3 processor with hardware floating point unit for efficient flight calculations and faster ARM-Cortex M4 core..

The SPRacingF3 gives you all the features you need for the heart of your aircraft, whether you’re into FPV racing, acrobatic flying or aerial photography it’s perfect.

FEATURES:

Configurable
The SPRacingF3 runs Cleanflight to configure and set the program.

Broad RC receiver Support

Supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM, PWM receivers. No external inverters required (built-in).

Battery Monitoring
Battery monitoring ports for voltage and current.

I2C Port
I2C port always powered, perfect for external sensors or always-on OLED Screen.

No-Compromise I/O
Use all the features all the time; e.g. Connect your OSD + SmartPort + SBus + GPS + LED Strip + Battery Monitoring + Sonar + 8 motors - all at the same time!

Flight Logging
On-board high-capacity black box flight log recorder - optimize your tuning and see the results of your setup without guesswork.

Tiny and lightweight
The SPRacingF3 has a standard 36x36mm form-factor with 30.5mm mounting holes and weighs just 6 grams. The mount holes are fully compatiable with Naze 32.

Developer Friendly
Developer friendly debugging port (SWD) and boot mode selection, unbrickable bootloader.

OneShot ESC
Full support for OneShot ESCs for easy PID tuning and a sharper response.

Broad RC receiver Support
Supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM, PWM receivers. No external inverters required (built-in).

Programmable LED
Dedicated output for programmable LEDs - great for orientation, racing and night flying.

Battery Monitoring
Battery monitoring ports for voltage and current.

Sonar

Sonar support for precision low-altitude hold.

Buzzer
Buzzer port for audible warnings and notifications.

103230 SP Racing F3 flight controller Acro  (standard version)	103231 SP Racing F3 flight controller Deluxe  (with additional sensors for altitude and direction)

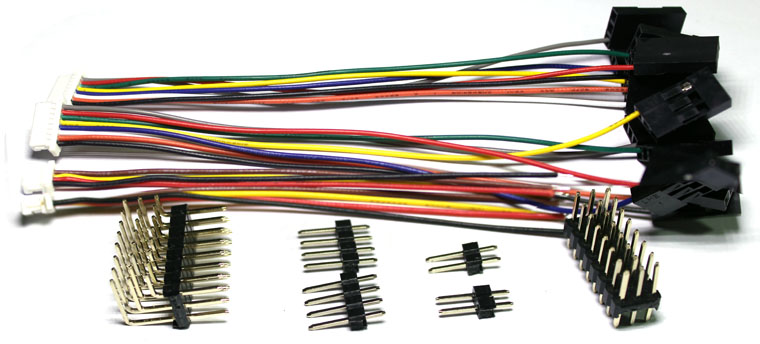

Wires and Pins

Packing box

Accessory

680322

Naze 32 & SP Racing F3 Mounting poles, screws and nuts 4 pcs each

M3-10mm Nylon screw 4pcs,  M3 Nylon nuts 4pcs,  M3.2 Nylon poles 3mm height 4pcs
