Wind G3 Handheld Gimbal 3 axis for Gopro

701103 Wind G3 Handheld Gimbal 3 axis for Gopro Hero 3 and Hero 4

701104 Wind G3 Handheld Gimbal 3 axis for Gopro Hero 4 Session

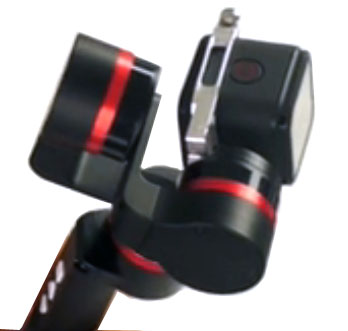

This Wind G3 Handheld Gimbal are designed for Gopro Hero 3 and Hero 4. With optional parts, it can fit Hero 4 Session too.

701104 Wind G3 Handheld Gimbal 3 axis for Gopro Hero 4 Session

Function Key:

There are 20 modes can be set by setting the firmware. The default 3 modes are as follows:

1. YAW Follow Mode：Single press the Mode Key to enter this mode. Camera Pitch and Roll work on locking mode, Yaw works on following mode.

2. YAW And Pitch Follow Mode：Double press the Mode Key to enter this mode. Camera Roll works on locking mode, Yaw and Pitch work on following mode.

3. YAW Lock Mode: Long press Mode key over 2 seconds to enter this mode. Camera Pitch, Roll and Yaw all work on locking mode.

Specifications:

	Min	Standard	Max
Working Voltage	7.0V	8.4V	17.0V
Pitch Angle	-175	0	+175
Roll Angle	-50	0	+50
Yaw Angle in Vertical	-175	0	+175
Yaw Angle in Horizental	-50	0	+50
Pitch Following Rate	2°/ Sec		75°/ Sec
Heading Following Rate	3°/ Sec		150°/ Sec
Joystick Up/Down Rate	20°/ Sec		40°/ Sec
Static Attitude Tracking Accuracy	0.01	0.02	0.05
Motion Attitude Tracking Accuracy	0.1	0.2	0.5
Overload Current Protection		800mA

Parts included:

Wind G3 Handheld Gimbal 3 axis for Gopro 1 set

Battery 18650 2 pcs

Battery charger 1 pcs

Weight: 285 gram without battery or camera
