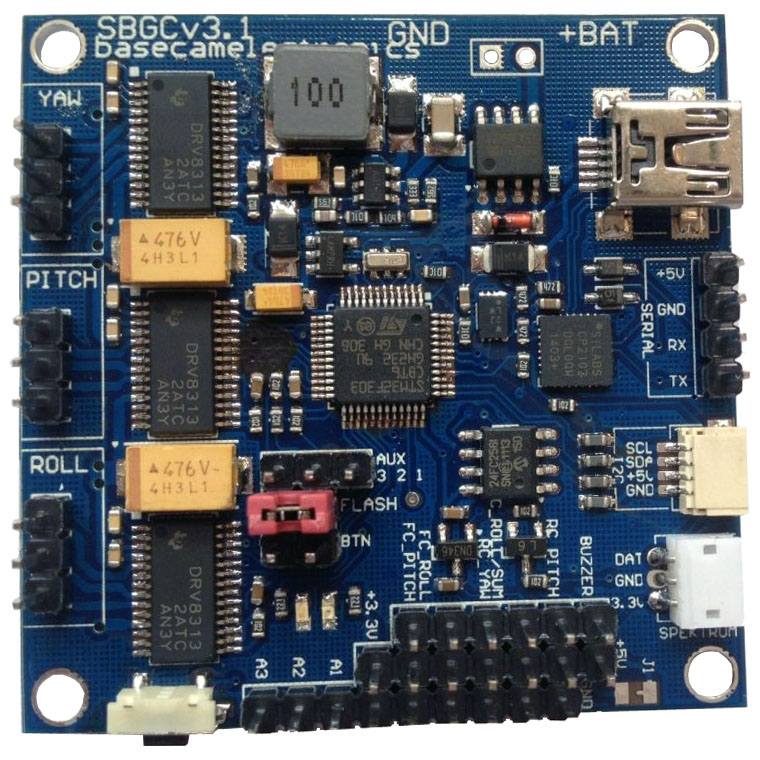

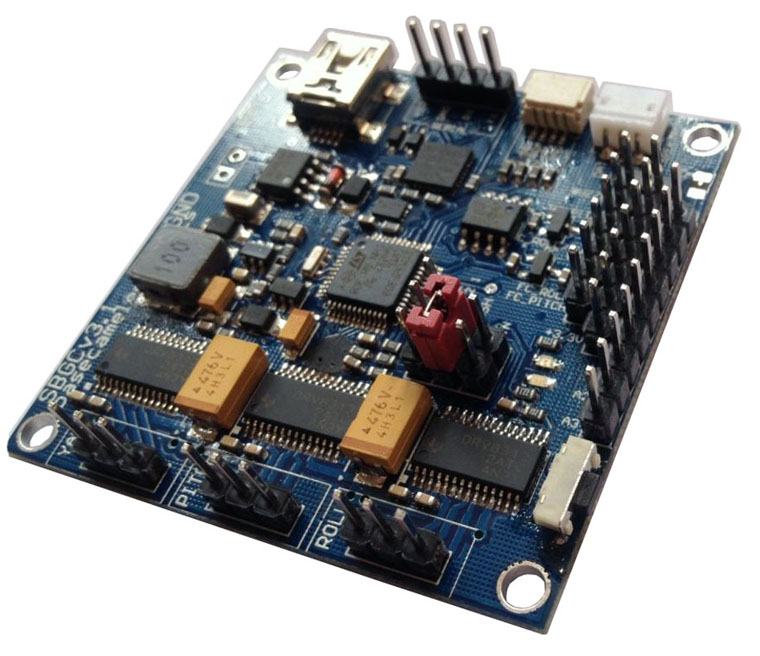

703321 BaseCam SimpleBGC 32-bit

703324 BaseCam SimpleBGC 32-bit with case

The controller is ready for sale.

The controller can be used for building high-quality 3-axis camera stabilizing systems which can be mounted to UAV and for building handheld camera stabilizers.

This version of the controller is our new direction in the development of the stabilizing solutions. It will replace the previous 8-bit version of the SimpleBGC controller, keeping 100% back-compatibility, but adding the new fuctionality.

Basic functions of the controller

32-bit MCU — ARM Cortex M4. Effectively calculates the complex tasks for 3-axis stabilization.
Allows camera control with the RC or analog joystick.
Use several switchable profiles for different modes of operation
Supports variety of RC protocols: PWM, Sum-PPM, spektrum and s-bus.
Battery voltage monitoring, compensating voltage drop in the PID-regulator.
Low battery alarm (output to 5V active buzzer).
Increased number of inputs for controlling signals + 3 additional reserved input/output AUX1-AUX3.
Can supply up to 1A current for external devices on the 5V power line.
Dedicated UART-socket to connect optional Bluetooth module
Reverse-polarity protection, overheat and overcurrent protection
USB interface for the PC connection, to configure, control and upgrade firmware.
Graphical user interface to manage the settings. Windows / OS X / Linux versions.
Control through the Serial-protocol using dedicated API.
Improved attitude estimation algorythms
Optional second IMU, that will increase the short-term precision of the stabilization 10x-30x times and  will make stable work in any frame position.

The principle of the camera stabilization using brushless direct drive motors

Dimensions, mm

Specifications:

Size of the board:                                 50×50 mm
Distance between the mounting holes:    45 mm
Diameter of the mounting holes:             3 mm
Power supply voltage:                           8–25 V (3s-5s LiPo)
Maximum motor current:                       30 A
5V output current to power external devices: up to     1 A

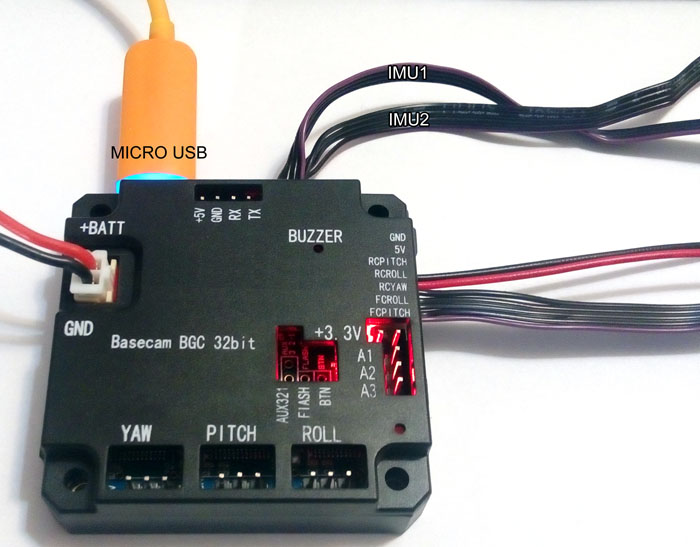

703324 BaseCam SimpleBGC 32-bit with case

The installation holes size 3mm, distance 45mm for the controller and 14.2mm for the IMU are compatible with 703321 BaseCam SimpleBGC 32-bit

Weight: 703324 BaseCam SimpleBGC 32-bit with case 20g without wires, 41g with wires

Package includes:

703324    BaseCam SimpleBGC 32-bit with case	1pcs
IMU	2pcs
IMU cable for frame 19cm	1pcs
IMU cable for camera 58cm	1pcs
7pin cable for pcpitch, pcroll, rcyaw, rcroll, rcpitch, 5V, GND 28cm	1pcs
2pin cable for battery power 4cm	1pcs
