MG25 Flight Controller for Quad rotors

Update: 2015/2/15      View:
  • Item No.:    102501, 102502
  • Intro:    Support AV241,QAV250, 450, 460, and etc quad rotors, Support Autolevel mode, and Manual mode
  • Order Online
Product Introduction

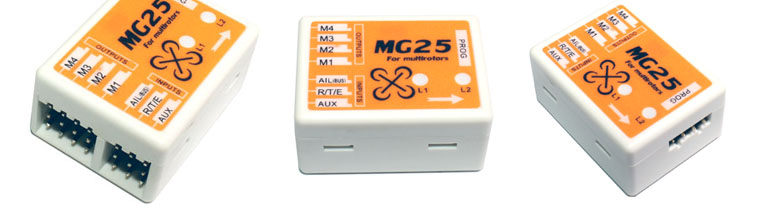

102501 MG25 Flight Controller for Quad rotors

MG25 flight controller is a precision designed specifically for mini quad rotors, such as Quad 250. It has Autolevel and Manual modes. The stability and maneuverability are fully tested, It can be programmed by FC53 field card.

Product Features
1 Using the gyro axis digital sensor;
2 Humanized design, debug menu PC interface, intuitive and accurate digitization.
3 Three modes can be switched, autolevel mode, gyro on mode, and gyro off mode.
4 Mini design, supports QAV250, 450, 460, and etc quad rotors.

Connection diagram with the receivers

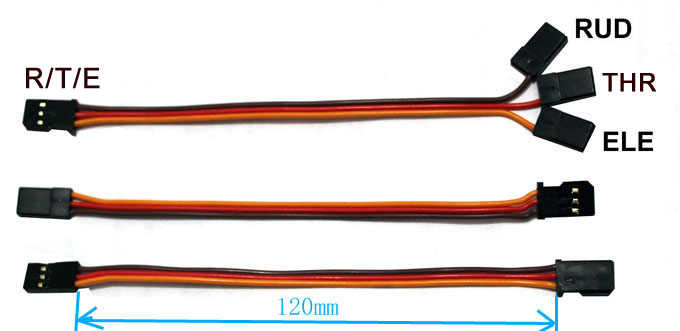

Connect wires

There are three sets of connection wires to connect the controller to the receiver, and one set of wires to connect the controller to the computor for settings.

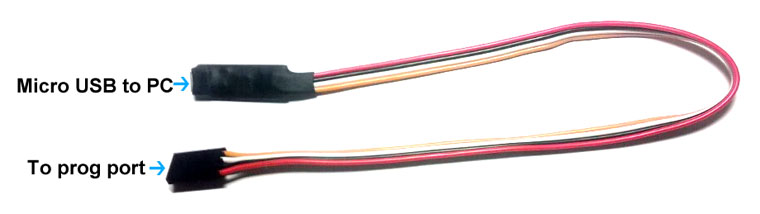

Setting with computer

The USB Link need to install the driver software. Please click the following button to download the driver for Windows XP, Windows 2003 server, Vista, Windows 7 and Windows 8.

Setting with FC53 multi function program card


There are two installation modes, one is X mode, the other is cross mode. Please check the following for installation diagram.

                                X mode                                                                                          Cross mode

Technical Parameters
Size: 32x24x16mm
Weight: 8gram
Operating voltage: DC 5v-6v
Remote control compatibility: PPM, PCM, 2.4G, and SBUS
Working temperature: -20 ℃ - 65 ℃

Item No. Products
102501 MG25 Flight Controller for Quad rotors + USB Link
102502 MG25 Flight Controller for Quad rotors + USB Link + FC53 Program Card


MG25 V1.1         Jan 8th, 2015

                            Support FC53 field card

MG25 V1.0         Oct 10th, 2014
