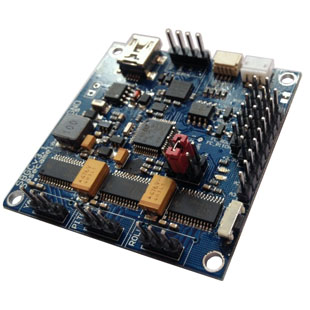

The controller can be used for building high-quality 2-axis camera stabilizing systems which can be mounted to UAV and for building handheld camera stabilizers. For expanding capability to 3-axis, 3rd axis expansion board is used.

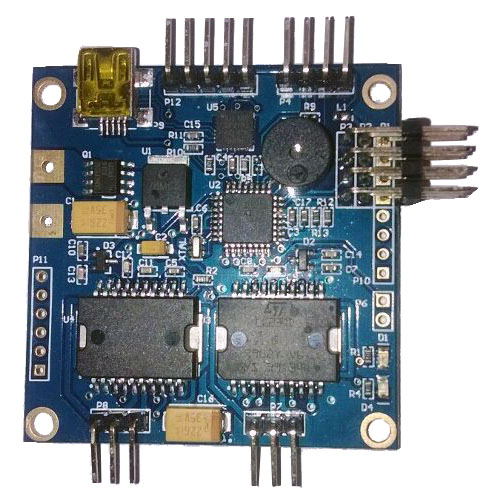

Size of the controller, mm
The controller specifications
Number of stabilization axes
2
Power supply voltage:
8..18V (3s-4s LiPo)
Maximum DC current to each motor
2.8A
Limiting short-time current (with the inclusion of protection) to each motor:
7.1A
Output current regulation:
8 or 32 KHz PWM
Sensor connection:
I2C
Supported sensors:
MPU6050
PC communication for configuration and upgrade:
on-board USB
Overcurrent protection:
Yes
Overheat protection:
Yes
Undervoltage protection:
Yes
Reverse polarity protection:
Yes
Dimensions:
50mm x 50mm (see drawing)
Mounting holes:
M3, 45mm
